SimpleUAM Installation Guide¶

Info

We would appreciate assistance in making this guide better. Any notes on issues with the install process, lack of clarity in wording, or other improvements would be appreciated.

Project Components — SimpleUAM Component Structure

The core goal of SimpleUAM is allow users to set up a service for processing requests to analyze UAM and UAV designs. Client nodes, such as optimizers or search tools, should be able to queue requests for distribution to worker nodes as they become available. The results of those analyses, packaged as zip files, should then be made available to the clients as they're completed.

The key components of a SimpleUAM deployment are:

Client Nodes: These make requests to analyze designs and retrieve analysis results once they finish. Client nodes will usually be running some optimization or search process.
Message Brokers: These gather analysis requests from client nodes and distribute them to free worker nodes.
Worker Nodes: These will perform analyses on designs and store the results somewhere accessible to the clients.
License Management: Each worker node needs Creo to perform analysis, and a license for Creo must be made available somehow.
- License Server: These can provide licenses to a number of worker nodes at once if provided with a floating license.
- Node-Locked Creo License: This is a worker-specific, static license file that can be placed on a worker.
Component Corpus: A corpus of component information that every worker needs in order to analyze designs.
- Corpus DB: A graph database that the worker can use to look up component information.
- Static Corpus: A static file containing a dump of the component corpus which is placed on each worker node.
Results Storage: A file system, accessible to both worker nodes and clients, where analysis results (in individual zip files) are placed.
Results Backends: These notify client nodes when their analysis requests are completed and where the output is in Results Storage.

In order to form a complete SimpleUAM deployment some core requirements need to be met:

There must be one, and only one, message broker.
- The broker must be accessible over the network to all worker and client nodes.
There needs to be at least one configured, running worker node to run analyses.
- Each worker node needs to have a Creo license, either through a node-locked license or a connection to a Creo license server.
- Each worker node needs to have access to a component corpus, either through an initialized corpus DB or a static corpus file.
There must be a results storage accessible to all the worker and client nodes.
- The results storage should be a directory where workers can place files which are then made accessible to all the clients.
  Possible Storage Mechanisms

  Generally the results store will be a mounted network file share or local folder, but could also be:
  - A network file system mounted on workers and clients. (Default)
  - A local folder, if both worker and client are on the same machine.
  - rsync+cron
  - Dropbox
  - Google Drive
  - S3 Drive
  - Anything that looks like a filesystem directory to both the worker and the client.
In order for clients to receive analysis completion notifications there must be a single, unique results backend.
- This backend must be accessible over the network to all worker nodes and any client that wants to receive notifications.

  A results backend is optional and simply polling the results storage is perfectly viable.

With a SimpleUAM deployment meeting those requirements, a client nodes can offload analysis jobs to a pool of workers though simple python and command line interfaces.

Choosing a Service Topology¶

It's possible to distribute SimpleUAM components between multiple machines in numerous ways that meet the given requirements. Picking a topology, specifically the components that go on each individual machine, tells you which installation steps are needed for that machine.

We'll look at two example topologies, one I use for (semi)local development work and one for a potential production system.

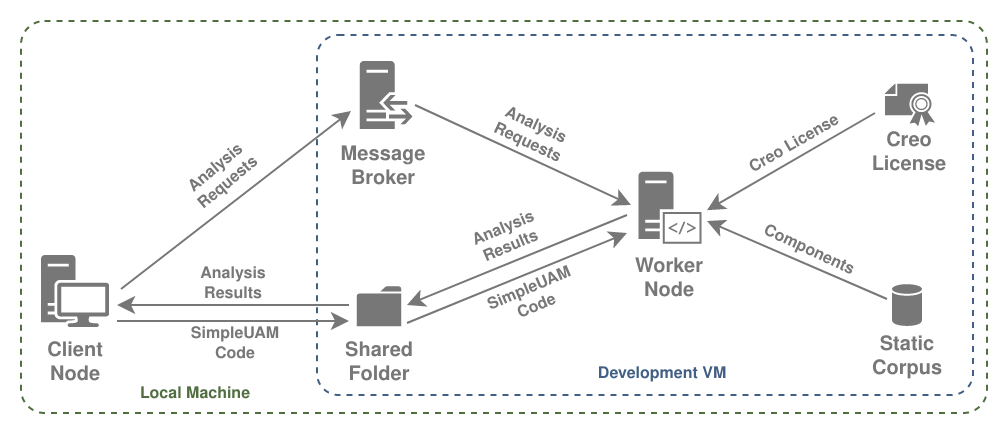

This development setup has a local machine and a single worker. The local machine is set up so it can run a SimpleUAM client and so that any code shared with a worker node can be edited in whatever manner the user is comfortable with. The worker node, running in a VM, then has all the other necessary components of the service, including broker, license, and corpus.

The structure is a broad guideline and can be tweaked as needed. For instance, if you're running windows you can just run all the components on your local machine and use a stub message broker that will run analysis requests as blocking calls. Alternately, the worker node can be running on a server somewhere with a NFS shared drive acting as the shared folder.

The production service has significantly more going on. There are one or more clients producing analysis requests, multiple workers processing them, a Creo license server, a message broker, a results backend, and results storage.

This setup can scale relatively easily while providing features like completion notifications. In fact this is the intended topology for the AWS instructions, with clients either accessing the other components via a VPN or simply running directly on the cloud.

Other topologies are also viable, for instance running a central graph database for all the workers to share instead of relying on a local, static corpus.

The most important part of choosing a service topology is knowing what component(s) are going to be running on each individual server or VM. Given that one can just go through the instructions for each component on a machine in sequence, repeating that process for each machine in the deployment.

Command Line Interfaces¶

All the command line scripts SimpleUAM provides are made using Invoke and evaluated within a PDM administered python environment.

This means that all the SimpleUAM provided commands must be run from <repo-root> and have this format:

pdm run <command>

All the core SimpleUAM commands suam-config, setup-win, craidl, d2c-workspace, and d2c-client will print a help message when run without arguments. In their base form these commands are safe and will never make change to your system. The help messages also provide a list of subcommands that do perform various tasks.

These subcommands are run with:

pdm run <command> <sub-command> [ARGS]

All of these subcommands come with detailed help information that can be accessed with:

pdm run <command> <sub-command> --help

These help messages are worth checking for available options and notes.

Configuration¶

SimpleUAM uses an internal configuration system based on OmegaConf. It reads YAML files in a platform specific directory for settings that are used throughout the system. While you can find a more detailed breakdown of the system here, this is a quick overview.

Configuration File Directory¶

Once the SimpleUAM project is installed (in General Setup) you can run the following command to find the config file directory:

pdm run suam-config dir

Files placed there will be loaded when most SimpleUAM code is started up. The configuration is immutable for the runtime of a program and changes will require a restart to register.

Configuration State¶

You can get a printout of the current configuration state with the following:

pdm run suam-config print --all

Sample Output of pdm run suam-config print --all

### paths.conf.yaml ###

config_directory: /etc/xdg/xdg-budgie-desktop/SimpleUAM/config
cache_directory: /usr/share/budgie-desktop/SimpleUAM/cache
log_directory: /home/rkr/.cache/SimpleUAM/log
work_directory: /usr/share/budgie-desktop/SimpleUAM
data_directory: /usr/share/budgie-desktop/SimpleUAM/data

### auth.conf.yaml ###

isis_user: null
isis_token: null

### win_setup.conf.yaml ###

global_dep_packages:
- checksum
- wget
- 7zip
broker_dep_packages:
- rabbitmq
worker_dep_packages:
- openjdk11
- rsync
- nssm
worker_pip_packages:
- psutil
- parea
- numpy
license_dep_packages: []
graph_dep_packages:
- openjdk11
- nssm
qol_packages:
- firefox
- notepadplusplus
- foxitreader
- tess
- freecad

### craidl.conf.yaml ###

example_dir: ${path:data_directory}/craidl_examples
stub_server:
  cache_dir: ${path:cache_directory}/corpus_stub_cache
  server_dir: ${path:data_directory}/corpus_stub_server
  graphml_corpus: ${path:data_directory}/corpus_stub.graphml
  host: localhost
  port: 8182
  read_only: false
  service:
    priority: NORMAL
    exit_action: Restart
    restart_throttle: 5000
    restart_delay: 1000
    redirect_io: false
    stdout_file: ${path:log_directory}/craidl_stub_db/stdout.log
    stderr_file: ${path:log_directory}/craidl_stub_db/stderr.log
    rotate_io: true
    auto_start: false
    console: true
    interactive: false
server_host: localhost
server_port: ${stub_server.port}
static_corpus: ${path:data_directory}/corpus_static_dump.json
static_corpus_cache: ${path:cache_directory}/static_corpus_cache
use_static_corpus: true

### corpus.conf.yaml ###

trinity:
  repo: https://git.isis.vanderbilt.edu/SwRI/ta1/sri-ta1/trinity-craidl.git
  branch: main
  examples_dir: examples
graphml_corpus:
  repo: https://git.isis.vanderbilt.edu/SwRI/athens-uav-workflows.git
  branch: uam_corpus
  graphml_file: ExportedGraphML/all_schema_uam.graphml
creopyson:
  repo: https://git.isis.vanderbilt.edu/SwRI/creoson/creopyson.git
  branch: main
creoson_server:
  api: https://git.isis.vanderbilt.edu/api/v4/projects/499/jobs/3827/artifacts/out/CreosonServerWithSetup-2.8.0-win64.zip
  manual: https://git.isis.vanderbilt.edu/SwRI/creoson/creoson-server/-/jobs/artifacts/main/raw/out/CreosonServerWithSetup-2.8.0-win64.zip?job=build-job
direct2cad:
  repo: https://git.isis.vanderbilt.edu/SwRI/uam_direct2cad.git
  branch: main

### d2c_workspace.conf.yaml ###

workspace_subdir_pattern: workspace_{}
reference_subdir: reference_workspace
assets_subdir: assets
locks_subdir: workspace_locks
results_dir: ${workspaces_dir}/results
results:
  max_count: -1
  min_staletime: 3600
  metadata_file: metadata.json
  log_file: log.json
workspaces_dir: ${path:work_directory}/d2c_workspaces
cache_dir: ${path:cache_directory}/d2c_workspaces
max_workspaces: 1
exclude:
- .git
result_exclude:
- .git
- workingdir/*.prt

### broker.conf.yaml ###

protocol: amqp
host: 127.0.0.1
port: 5672
db: ''
url: ${.protocol}://${.host}:${.port}${.db}
backend:
  enabled: false
  protocol: redis
  host: 127.0.0.1
  port: 6379
  db: '0'
  url: ${.protocol}://${.host}:${.port}/${.db}

### d2c_worker.conf.yaml ###

max_processes: ${d2c_workspace:max_workspaces}
max_threads: 1
shutdown_timeout: 600000
skip_logging: false
service:
  priority: NORMAL
  exit_action: Restart
  restart_throttle: 5000
  restart_delay: 1000
  redirect_io: false
  stdout_file: ${path:log_directory}/d2c_worker/stdout.log
  stderr_file: ${path:log_directory}/d2c_worker/stderr.log
  rotate_io: true
  auto_start: false
  console: true
  interactive: false

If you want to see the full expanded version of the configs, with all the interpolations resolved, add the --resolved flag.

Sample Output of pdm run suam-config print --all --resolved

### paths.conf.yaml ###

config_directory: /etc/xdg/xdg-budgie-desktop/SimpleUAM/config
cache_directory: /usr/share/budgie-desktop/SimpleUAM/cache
log_directory: /home/rkr/.cache/SimpleUAM/log
work_directory: /usr/share/budgie-desktop/SimpleUAM
data_directory: /usr/share/budgie-desktop/SimpleUAM/data

### auth.conf.yaml ###

isis_user: null
isis_token: null

### win_setup.conf.yaml ###

global_dep_packages:
- checksum
- wget
- 7zip
broker_dep_packages:
- rabbitmq
worker_dep_packages:
- openjdk11
- rsync
- nssm
worker_pip_packages:
- psutil
- parea
- numpy
license_dep_packages: []
graph_dep_packages:
- openjdk11
- nssm
qol_packages:
- firefox
- notepadplusplus
- foxitreader
- tess
- freecad

### craidl.conf.yaml ###

example_dir: /usr/share/budgie-desktop/SimpleUAM/data/craidl_examples
stub_server:
  cache_dir: /usr/share/budgie-desktop/SimpleUAM/cache/corpus_stub_cache
  server_dir: /usr/share/budgie-desktop/SimpleUAM/data/corpus_stub_server
  graphml_corpus: /usr/share/budgie-desktop/SimpleUAM/data/corpus_stub.graphml
  host: localhost
  port: 8182
  read_only: false
  service:
    priority: NORMAL
    exit_action: Restart
    restart_throttle: 5000
    restart_delay: 1000
    redirect_io: false
    stdout_file: /home/rkr/.cache/SimpleUAM/log/craidl_stub_db/stdout.log
    stderr_file: /home/rkr/.cache/SimpleUAM/log/craidl_stub_db/stderr.log
    rotate_io: true
    auto_start: false
    console: true
    interactive: false
server_host: localhost
server_port: 8182
static_corpus: /usr/share/budgie-desktop/SimpleUAM/data/corpus_static_dump.json
static_corpus_cache: /usr/share/budgie-desktop/SimpleUAM/cache/static_corpus_cache
use_static_corpus: true

### corpus.conf.yaml ###

trinity:
  repo: https://git.isis.vanderbilt.edu/SwRI/ta1/sri-ta1/trinity-craidl.git
  branch: main
  examples_dir: examples
graphml_corpus:
  repo: https://git.isis.vanderbilt.edu/SwRI/athens-uav-workflows.git
  branch: uam_corpus
  graphml_file: ExportedGraphML/all_schema_uam.graphml
creopyson:
  repo: https://git.isis.vanderbilt.edu/SwRI/creoson/creopyson.git
  branch: main
creoson_server:
  api: https://git.isis.vanderbilt.edu/api/v4/projects/499/jobs/3827/artifacts/out/CreosonServerWithSetup-2.8.0-win64.zip
  manual: https://git.isis.vanderbilt.edu/SwRI/creoson/creoson-server/-/jobs/artifacts/main/raw/out/CreosonServerWithSetup-2.8.0-win64.zip?job=build-job
direct2cad:
  repo: https://git.isis.vanderbilt.edu/SwRI/uam_direct2cad.git
  branch: main

### d2c_workspace.conf.yaml ###

workspace_subdir_pattern: workspace_{}
reference_subdir: reference_workspace
assets_subdir: assets
locks_subdir: workspace_locks
results_dir: /usr/share/budgie-desktop/SimpleUAM/d2c_workspaces/results
results:
  max_count: -1
  min_staletime: 3600
  metadata_file: metadata.json
  log_file: log.json
workspaces_dir: /usr/share/budgie-desktop/SimpleUAM/d2c_workspaces
cache_dir: /usr/share/budgie-desktop/SimpleUAM/cache/d2c_workspaces
max_workspaces: 1
exclude:
- .git
result_exclude:
- .git
- workingdir/*.prt

### broker.conf.yaml ###

protocol: amqp
host: 127.0.0.1
port: 5672
db: ''
url: amqp://127.0.0.1:5672
backend:
  enabled: false
  protocol: redis
  host: 127.0.0.1
  port: 6379
  db: '0'
  url: redis://127.0.0.1:6379/0

### d2c_worker.conf.yaml ###

max_processes: 1
max_threads: 1
shutdown_timeout: 600000
skip_logging: false
service:
  priority: NORMAL
  exit_action: Restart
  restart_throttle: 5000
  restart_delay: 1000
  redirect_io: false
  stdout_file: /home/rkr/.cache/SimpleUAM/log/d2c_worker/stdout.log
  stderr_file: /home/rkr/.cache/SimpleUAM/log/d2c_worker/stderr.log
  rotate_io: true
  auto_start: false
  console: true
  interactive: false

Generating Stub Config Files¶

You can also use the write subcommand to write sample config files out to the appropriate locations. Run the following for more info:

pdm run suam-config write --help

Installing Config Files¶

The install subcommand will symlink or copy config files from another location into the configuration directory for you. This is useful if you want to share config files between worker nodes or rapidly update a deployment. Run the following for more info:

pdm run suam-config install --help

Config File Format¶

Config files can be partial and do not need to define every possible key. Keys that are missing will just use their default values.

Overriding Configuration Fields.

Consider the following defaults for example.conf.yaml:

### example.conf.yaml defaults ###
subsection:
    subfield-1: 'default'
    subfield-2: 'default'
field-1: 'default'
field-2: 'default'

With the following example.conf.yaml actually on disk:

### example.conf.yaml defaults ###
subsection:
    subfield-2: 'modified'
field-1: 'modifed'

The final loaded values for example.conf.yaml as seen by the application would be:

### example.conf.yaml defaults ###
subsection:
    subfield-1: 'default'
    subfield-2: 'modified'
field-1: 'modified'
field-2: 'default'

When describing keys in a config file, we'll use dot notation.

Config File Dot Notation

Consider the following config file:

subsection:
    subfield-1: 'sub-1'
    subfield-2: 'sub-2'
field-1: 'fld-1'
field-2: 'fld-2'

Then field-1 would have value 'fld-1' and subsection.subfield-1 would have value 'sub-1'

Likewise, setting foo to 3 and bar.buzz to 4 would leave you with the following file:

foo: 3
bar:
    buzz: 4

Further details are here...

Placeholder Conventions¶

Throughout these install instructions, but especially in the AWS setup, we use placeholders like <this-one> to represent values that will be useful later or which you, the user, should provide. In either case, this information should be saved somewhere for future reference.

This guide tries to proactive about asking you to save potentially useful information. We recommend keeping a file open for this.

Example placeholder file from partway through AWS setup.

aws-vpc:
  prefix: example
  name: example-vpc
  id: vpc-XXXXXXXXXXXXXXXXX

aws-public-subnet:
  name: example-public1-XX-XXXX-XX
  id: subnet-XXXXXXXXXXXXXXXXX

aws-private-subnet:
  name: example-private1-XX-XXXX-XX
  id: subnet-XXXXXXXXXXXXXXXXX
  group:
    name: example-private-group

aws-elastic-ip:
  name: example-eip-XX-XXXX-XX
  addr: 0.0.0.0
  id: eipassoc-XXXXXXXXXXXXXXXXX

We never use this information programmatically, so use whatever format you want, but it does make it easier to keep track of what you're doing during install. This is particularly important if you are setting up multiple machines and don't want to waste time.

Installation and Setup¶

Setting up a SimpleUAM requires choosing how components are distributed between the different machines in a deployment.

SimpleUAM Deployment Components

Client Nodes: These make requests to analyze designs and retrieve analysis results once they finish. Client nodes will usually be running some optimization or search process.
Message Brokers: These gather analysis requests from client nodes and distribute them to free worker nodes.
Worker Nodes: These will perform analyses on designs and store the results somewhere accessible to the clients.
License Management: Each worker node needs Creo to perform analysis, and a license for Creo must be made available somehow.
- License Server: These can provide licenses to a number of worker nodes at once if provided with a floating license.
- Node-Locked Creo License: This is a worker-specific, static license file that can be placed on a worker.
Component Corpus: A corpus of component information that every worker needs in order to analyze designs.
- Corpus DB: A graph database that the worker can use to look up component information.
- Static Corpus: A static file containing a dump of the component corpus which is placed on each worker node.
Results Storage: A file system, accessible to both worker nodes and clients, where analysis results (in individual zip files) are placed.
Results Backends: These notify client nodes when their analysis requests are completed and where the output is in Results Storage.

The assignment between components and machines must follow the following rules.

Deployment Topology Rules

There must be one, and only one, message broker.
- The broker must be accessible over the network to all worker and client nodes.
There needs to be at least one configured, running worker node to run analyses.
- Each worker node needs to have a Creo license, either through a node-locked license or a connection to a Creo license server.
- Each worker node needs to have access to a component corpus, either through an initialized corpus DB or a static corpus file.
There must be a results storage accessible to all the worker and client nodes.
- The results storage should be a directory where workers can place files which are then made accessible to all the clients.
  Possible Storage Mechanisms

  Generally the results store will be a mounted network file share or local folder, but could also be:
  - A network file system mounted on workers and clients. (Default)
  - A local folder, if both worker and client are on the same machine.
  - rsync+cron
  - Dropbox
  - Google Drive
  - S3 Drive
  - Anything that looks like a filesystem directory to both the worker and the client.
In order for clients to receive analysis completion notifications there must be a single, unique results backend.
- This backend must be accessible over the network to all worker nodes and any client that wants to receive notifications.

  A results backend is optional and simply polling the results storage is perfectly viable.

Then follow the steps for network setup once, and the machine setup instructions for each machine in the deployment.

Network Setup¶

Once a deployment topology has been chosen, first set up the network so that:

All workers and clients can communicate with the message broker and results backend.
If using a license server, ensure it can communicate with all the workers.
If using a global, shared corpus DB ensure it can communicate with all the workers.

If you are using AWS you can start with our instructions for setting up a virtual private cloud (VPC). It sets up a private subnet for non-client machines and a VPN and Network drive for access to that private subnet.

AWS (Network) Setup

Machine Setup¶

Installation for each machine requires following the other pages in this section in order, skipping any that aren't relevant and always including general setup. Try to setup machines with centralized functions, like the license server and message broker, before the worker nodes.

Client nodes are less directly dependent on the SimpleUAM infrastructure and their setup can skip directly to the corresponding section:

Client Node

Example Installation Orders¶

Here are some worked examples of how to proceed through the setup process for our example deployment topologies:

Example Local Development Deployment

This deployment places a single worker node in a VM on a host machine.

Initial setup would begin with:

Creating a Windows VM for the worker.
Ensuring that the VM can access the internet.
Ensuring the host machine has a route to the VM at some IP address.
Ensuring that a folder in the VM is mounted or mirrored on the host machine.

Setup for the Worker VM would then go through the instructions for the relevant components:

Finally, the host machine would go through the client instructions at:

Client Node

Example Production Deployment

This deployment spreads work over multiple worker nodes within a subnet.

Initial setup on AWS would follow AWS (Network) Setup, otherwise it would begin with:

Creating the license server along with the broker, results, and worker nodes.
Creating the results storage and ensuring it's mounted on the worker nodes.
Ensure that the workers have a route to the license server and the message broker.

The license server would go through the following, adding the AWS step if needed:

The message broker would likewise go through:

Similarly, each worker node would go through:

A clone of a working worker should be fully functional out of the box.

Finally, each client would go through the client instructions at:

Client Node
